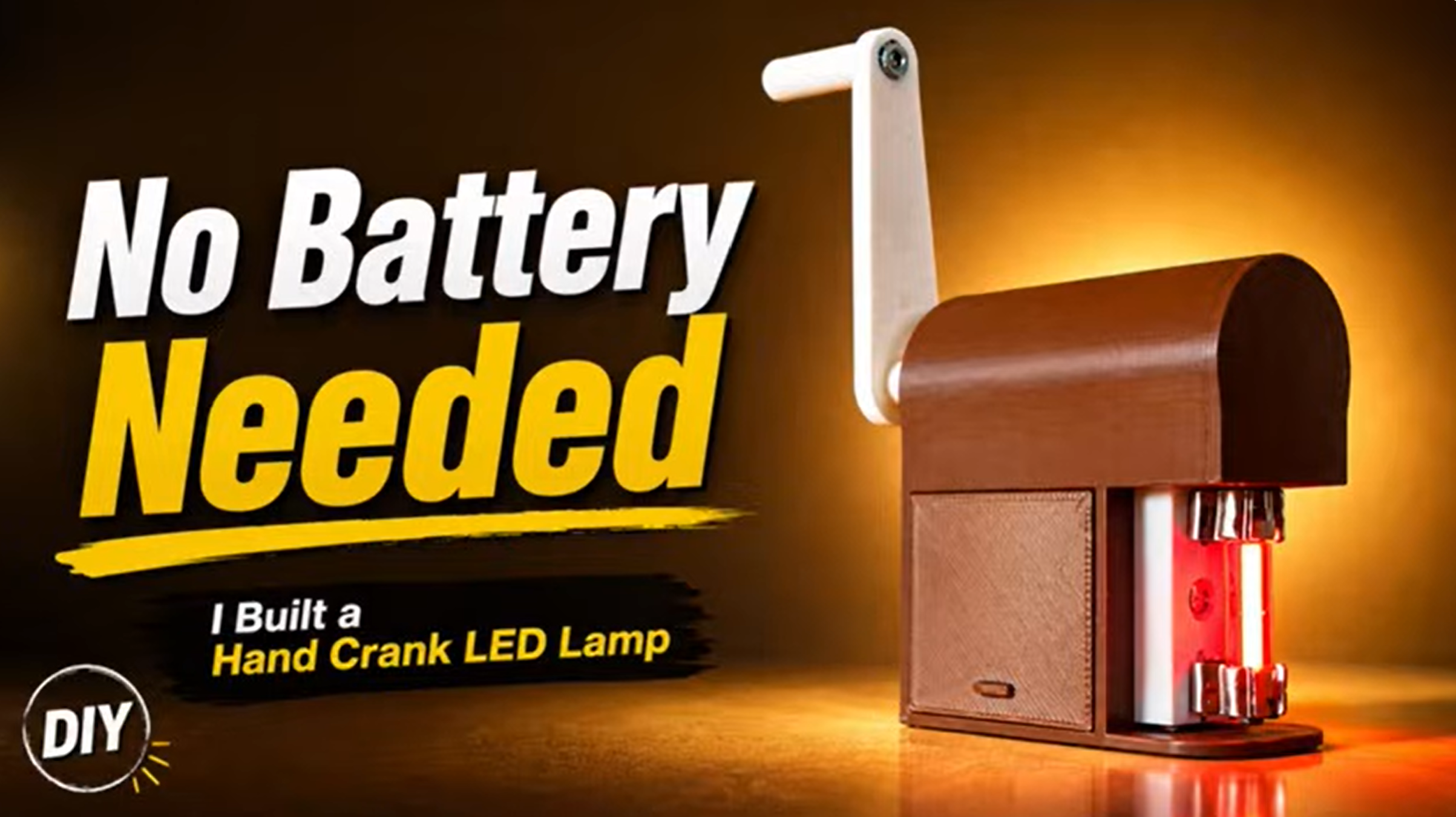

DIY Hand Crank LED Lamp – No Battery Needed!

DIY Projects

Generate your own electricity and light up an LED without using a battery!

In this creative DIY project, I’ll show you how to build a fully 3D-printed hand crank LED lamp that generates electricity using a geared DC motor and stores the energy in a supercapacitor.

Simply turn the handle to generate electrical power! The energy is stored in a 5.5V 1.5F supercapacitor, allowing the LED to continue glowing even after you stop cranking.

In my current setup, approximately 2 minutes of hand cranking can provide up to 10 minutes of LED light, depending on crank speed, LED color, and component efficiency.

This project is a fun combination of 3D printing, electronics, energy harvesting, and practical engineering.

How Does the Hand Crank LED Lamp Work?

The system converts mechanical energy into electrical energy through a geared DC motor operating as a generator.

When you turn the crank, the motor produces electricity. A KBP210 bridge rectifier ensures the correct output polarity regardless of the cranking direction.

An MP1584EN DC-DC step-down module regulates the voltage, while a 5.5V 1.5F supercapacitor stores the generated energy.

An ideal diode module helps prevent stored energy from flowing backward into the circuit.

Once charged, the supercapacitor continues powering the LED even when you’re no longer turning the handle.

No disposable batteries, no external power supply — just energy generated by hand!

Main Features

Battery-Free Operation: Generates electricity using a hand crank.
Supercapacitor Energy Storage: Stores energy without a conventional battery.
Extended LED Lighting: Approximately 2 minutes of cranking can provide up to 10 minutes of light in the demonstrated setup.
Replaceable LED Filament: Easily change the LED color.
Bidirectional Cranking: The bridge rectifier maintains the correct output polarity.
3D-Printed Construction: Includes the enclosure, crank, motor mount, LED holder, and electronics housing.
Compact DIY Design: A creative demonstration of mechanical-to-electrical energy conversion.

Unique Replaceable LED Design

One of my favorite features is the replaceable LED filament.

Instead of permanently attaching the LED, I installed a 3V LED filament inside a modified 6 × 30 mm glass fuse body.

This allows the LED assembly to be removed and replaced with a different color, making the lamp more customizable.

Components You’ll Need

Electronics

JGA25-370 12V 170 RPM Geared DC Motor
KBP210 Bridge Rectifier
MP1584EN DC-DC Step-Down Module
5.5V 1.5F Supercapacitor
Ideal Diode Anti-Backflow Module
100Ω 0.25W Current-Limiting Resistors
3V LED Filament
ON/OFF Switch
Connecting Wires

Mechanical Components

3D-Printed Enclosure
3D-Printed Hand Crank
Motor Mount and Electronics Holder
6 × 30 mm Glass Fuse Body
6 × 30 mm Fuse Holder
Screws and Small Connectors

What You’ll Learn

In this project, you’ll explore:

How to generate electricity using a geared DC motor.
How a bridge rectifier works.
How to regulate voltage using a DC-DC converter.
How to store electrical energy in a supercapacitor.
How to prevent reverse current flow.
How to create a replaceable LED filament.
How to assemble a fully 3D-printed hand crank mechanism.
How to test the finished battery-free LED lamp.

Watch the Full Step-by-Step Tutorial

I’ve created a YouTube video showing the hand crank LED lamp, its components, assembly, and operation.

Discover how mechanical motion can be converted into electrical energy to power a small LED light.

Watch the project on my YouTube channel: Bambu3Design!

Download the 3D Printing Files

Want to build your own hand crank LED lamp?

The complete 3D-printable model files are available on my MakerWorld page.

Download the 3D Printing Files:

https://makerworld.com/models/3253109

Why Use a Supercapacitor Instead of a Battery?

Supercapacitors can charge and discharge rapidly and withstand many more charge-discharge cycles than conventional rechargeable batteries.

For a small hand-powered lamp, a supercapacitor makes it possible to store generated energy and power an LED after cranking stops.

The main limitation is its relatively low energy storage capacity compared with batteries, making it most suitable for short-duration lighting and demonstrations.

Safety Note: Ensure the supercapacitor voltage never exceeds its rated 5.5V. Verify the circuit output voltage before connecting the capacitor and LED.
